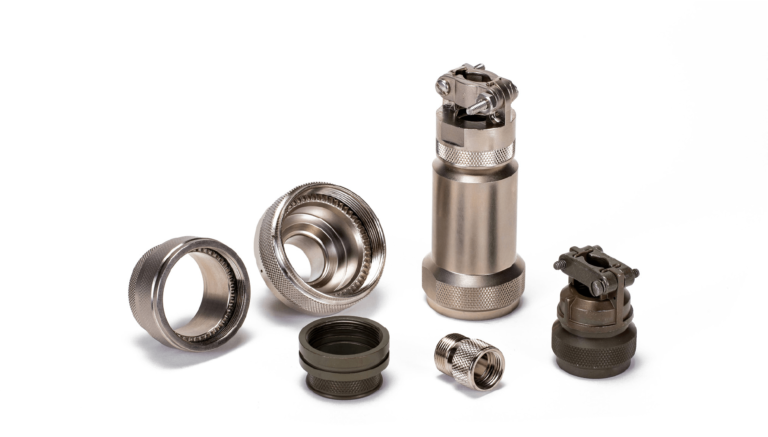

Electromagnetic interference (EMI) and radio frequency interference (RFI) generate interference. When strong external noise fields exist, the conductors of a cable act as antennas and pick up the radiated signals. The reception of this interference results in inaccurate or interrupted data transmission. An effective shield prevents the reception of undesired signals as well as confining extraneous signals generated within the cable itself. EMI/RFI backshells enclose the cable in a tightly woven metal braid comprised of wire strands which is then terminated at one or both ends of the cable to ground potential. The termination and grounding of the shield is accomplished by using a suitable connector backshell. A variety of backshell configurations are available for termination of cable shielding.
| SERIES | DESCRIPTION | PAGE |
|---|---|---|
| 55 | STRAIN RELIEF TERMINATION EMI/RFI NON-ENVIRONMENTAL BACKSHELL | 86 |
| 70 | OUTER SHIELD TERMINATION EMI/RFI NON-ENVIRONMENTAL BACKSHELL | 88 |
| 71 | HEAVY DUTY OUTER SHIELD TERMINATION EMI/RFI NON-ENVIRONMENTAL BACKSHELL | 90 |
| 72 | LIGHT DUTY OUTER SHIELD TERMINATION EMI/RFI NON-ENVIRONMENTAL BACKSHELL | 92 |
| 74 | INNER OR OUTER SHIELD TERMINATION EMI/RFI NON-ENVIRONMENTAL BACKSHELL | 94 |
| 75 | INNER AND OUTER SHIELD TERMINATION EMI/RFI NON-ENVIRONMENTAL BACKSHELL | 96 |
| 76 | INNER AND OUTER SHIELD TERMINATION EMI/RFI NON-ENVIRONMENTAL BACKSHELL | 98 |
| 77 | INNER OR OUTER SHIELD TERMINATION EMI/RFI NON-ENVIRONMENTAL BACKSHELL | 100 |
